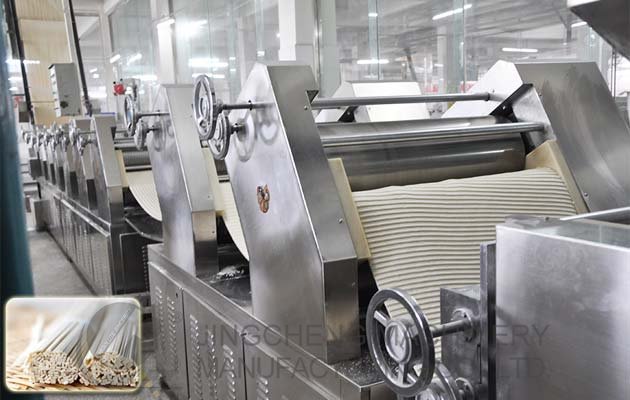

Stick Noodles Plant

Automatic Noodle Production Machine Line for Dried Chinese Noodles

  • Model:GMS50-Ⅱ
  • Capacity:5 tons/8hour
  • Dimension:Customize according to factory size
  • Power:63 kw
  • Application of Production Line for Dried Chinese Noodles
    Dried Chinese noodle production line can automatically finish production from flour mixing, saline water mixing, measuring water, mixing and curing flour, flour pressing, dough sheet curing, continuous rolling, rod supplying, noodles hanging, putting-up shelves, suspension operation, drying dehydration, putting-down from shelves, cutting into certain length noodles, fully automatic operation, basically realize automation production.

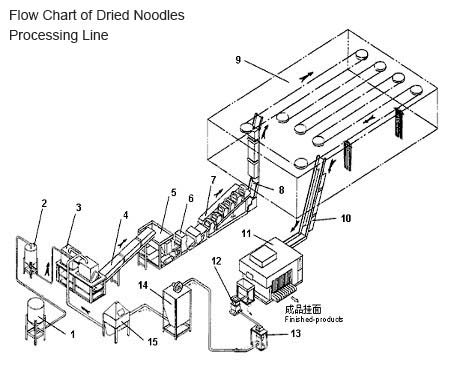

    Chinese Noodles Production Line Mnufacturing Process
    Product Features of Stick Noodles Production Line
    Dry noodles production line has high degree of automation, novel structure, reasonable design, smooth operation, safe and reliable, convenient maintenance, etc. The produced noodle has chewiness and refreshing colour and uniform lustre, which has been boiled, full of elasticity.
    Basic Production Process for Chinese Noodles Production Line: Lifting to cast flour, water mixing and measuring - Flour Mixing - Mixed flour curing conveyor - continuous rolling pressing - Fixed noodles cutting - Giving rod - Hanging on lever shelves - Enter drying room for drying - Putting down from shelves - fixed-length stick noodles cutting and packing.

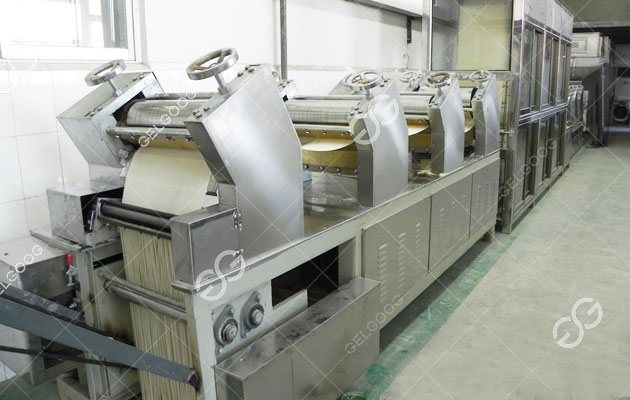

    Chinese Noodles Production Machine
    Configuration of Dried Chinese Noodles Production Line
    1, Flour delivery system
    Application: This machine uniformly quantitatively send flour after sieve filtration through pneumatic conveying, to filter gas storage tank.
    Features: High productivity, can decorate according to the needs of field, the powder storehouse can be set separately, convenient and clean, simple maintenance.
    2, Flour Mixing System
    The dough mixing equipment consists of the airflow conveying of flour, salt water mixer, and double speed biaxial dough mixer, electric control cabinet, quantity control the flour and mixed well saline water,form atomization state mixed with flour, loose the dough, dry wet evenly.

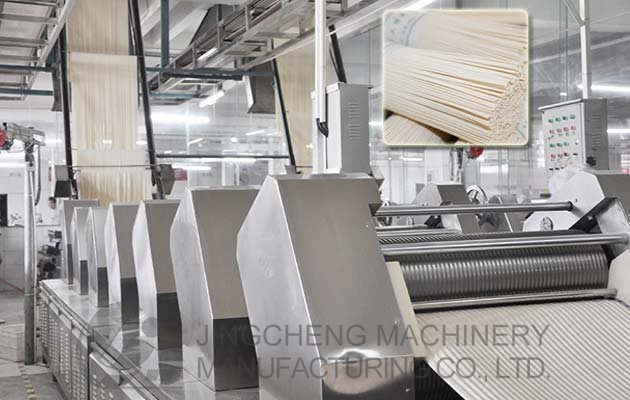

    3. Composite Continuous Dough Pressing Cutting System
    Curing machine, rolling machine, continuous pressing machine, cutting machine, rod supplying hanging machine, five parts form one group, complete noodles forming stage. Mixed flour through 10 minutes' curing, into composite rolling machine, form dough sheet, and through 8 rollers pressing, to form 0.8-2 mm dough sheet. The pressed dough after cut knife, according to the different specifications cut into 0.8-6 mm wet noodles. Rod supplying machine hang 2400-2600mm long noodles to parallel chain, adopting photoelectric or close to shut electric control, hang on the hanger drying device synchronously. End cutting machine installed on the starting point in the process of the drying.

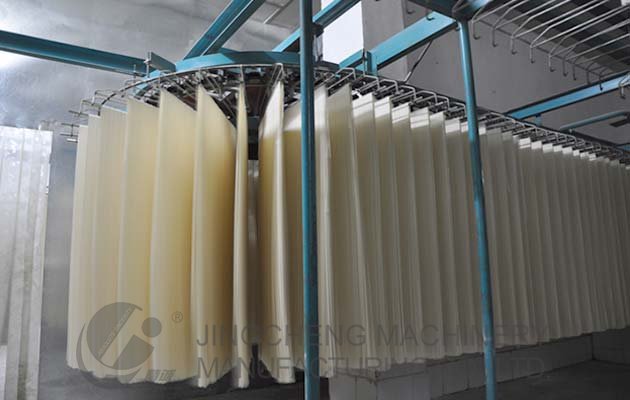

    4, Drying System
    New low temperature Chinese noodle production line includes the drying operation main drive, hanging chain, hanging equipment, steel structure cooling ceiling fan, moisture removal fan, air heater, sensor, temperature and humidity control instrument, electrical control cabinet, etc. Hanging chain hanging adopts stepless frequency control of motor speed operation, send noodles into the drying zone.

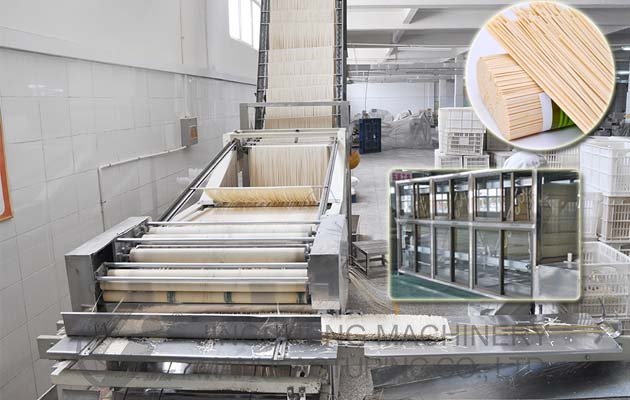

    5, Putting down Noodles System
    By the putting down machine, cutting tidy machine, multi knives or smart single-pole noodles cutter machine, electric control cabinet and so on, after 5 hours drying, dry noodles are sent into noodles cutter machine, cut into stick noodles with certain length (can adjust the length from 100 mm to 300 mm), packing by measuring the required weight of noodles.

    Related Product:
    Instant Noodles Manufacturing Plant

    Our Service
    We sincerely supply comprehensive and best service to all of our customers. We offer services for the following.
    1. supply solutions for the buyers' special demands
    2. new design plant layout according to the actual situation
    3. onsite installation, commissioning and operational training
    4. provide technical support both at setup and maintain
    5. long - term supply of spare parts
    6. warranty service

    About Us
    JINGCHENG Machinery Company set up in 1988, is a professional manufacturer and exporter of different noodle making machines.Our company offers complete sets of fried instant noodle production line and non-fried instant noodle production line, dried noodle production line,fresh noodle production line, corn noodle production line and rice noodle production line. As a result of our high quality products and outstanding customer service, we have gained a global sales network . The products of our company are exported to many countries in Asia, Western Europe and South Africa.

    Contact us now! To get more information about noodle production!
  • Equipment Model Remark
    Brine mixer YSH100 Power:1.5kw
    Supply Metering Device YSJ10 Pump 0.75kw
    Volume: 110L
    Round tank
    stainless steel
    Double Shaft and Speed Mixer HMJ200 Motor power: 9/11kw
    manual opening
    Dough Ripening Machine JS300 Power: 0.75kw+1.5kw
    Continuous Rolling Machine MT8-63 Slitting width 450mm
    Power: 5.5kw+7.5kw
    8 pairs steel roller
    Hanging Stick Supplying Machine GT450 Power: 1.5kw
    noodle length adjustable
    Noodle Cutting Tidy Machine JQ450 Power: 0.55kw
    Hanging Rising Machine GT450 Carbon steel
    Chain Plate Drying Machine HF50 Main power: 2.2kw
    Industrial fans: 0.75 kw*30
    4 rows rod
    drying time 4hours
    Hanging rods 5000pcs
    Automatic Hob Cutting Machine ZQM50A Noodle length: 120-290mm
    Power: 0.8kw
    Electric Control System   Frequency control
    PLC control

    * for reference
